Mortuary Fridge - 4 Body Roll in  - For 27" Tray Carrier - KB400

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

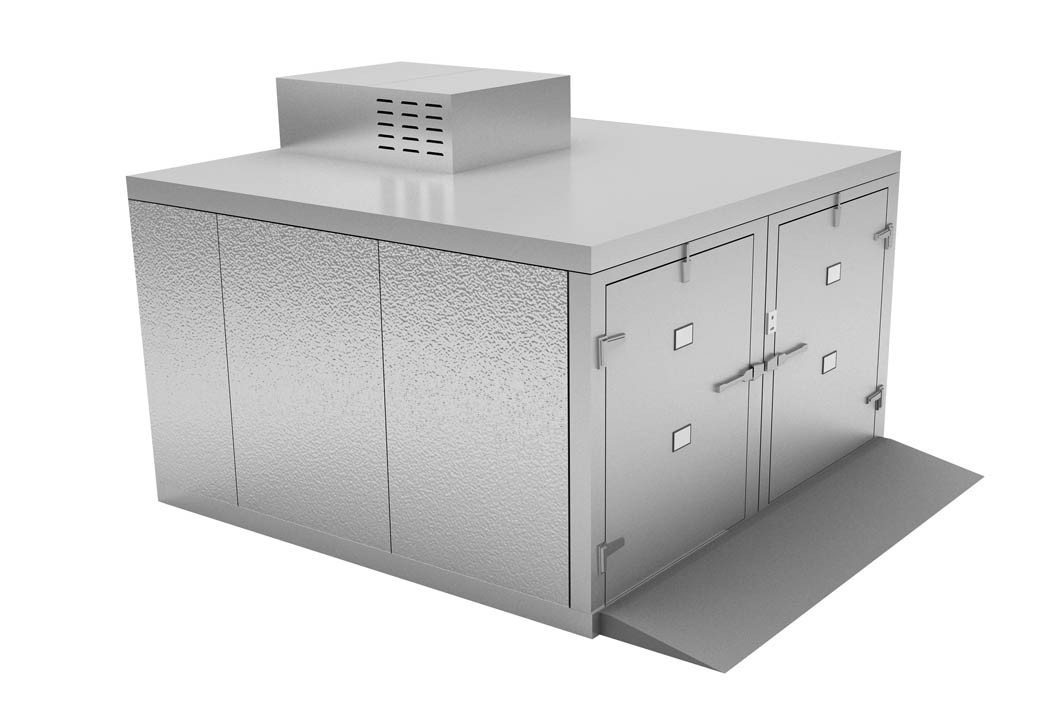

Mortuary Fridge - 4 Body Roll in - For 27" Tray Carrier - KB400

Availability: In stock

£0.00

Quick Overview

Roll-in mortuary fridges are designed to be used with a one tier or two tier body carrier made to the highest of quality.

Please contact us on 01283 819922 for any further information..
OR

Details

Roll-in mortuary fridges are designed to be used with a one tier or two tier body carrier. Wide individual doors ( 2) open to a compartment that easily accommodates a two tier body carrier that is simply rolled in or out. The KB400 will accommodate two (2) 27" body trays.

The KB400 is compatible with the JB200 carrier and the JA600, JA631, DA100, DB100, DC400 and DC500 trolley. Ramp included.

Price on Application

Specifications

• Dimensions: 9'(274cm) L x 8'(243cm) W x 5'4"(162cm) H
• (1) CPB075DC-A Refrigeration System
• Approximate Total Shipping Weight (lbs) 2,266 Finishes:
• 26 Gauge Corrosion Resistant Stucco Embossed Coated Steel- Interior wall, Exterior wall, Interior ceiling
• 20 Gauge Stainless Steel-Exposed wall
• 26 Gauge Smooth Galvanized-Ceiling topside, floor bottom side
• 14 Gauge Galvanized- Interior floor
• (2) Vapor proof Light Fixture (Shipped Loose For Field Installation).
• (1) Medium Ceiling Mount Capsule-Pak Refrigeration System Opening(For Use With Non-Standard Capsule-Pak Locations)
• (1) 2" Solar Powered Digital Thermometer Installed in Wall
• Sq. Ft. Of 3/4"CDX Plywood Sub floor
• (1) (2) Wrap Around Corner for Door Section
• (1) Set of 4 Card Holders
• (1) Set of (2) 42"(106cm) x 51"(129cm) Walk In Door - Stainless Int.
• Includes door closer, cam lift hinges, NL9800 deadbolt/Key padlock handle with inside safety release,magnetic gasket, heater wire, digital thermometer, and double sweep gasket.
• (1) Switch and Pilot Light Installed in the wall
• (1) Special 96"(243cm) Exterior Ramp with Non Skid Strips Applied (25-1/2"(63cm) Deep)
• (1) CPB075DC-A 4 Degrees Celsius Operation, Capsule-Pak Refrigeration System, Indoor Ceiling Mount High Temperature, ''Off Cycle''Timer,R-404A Refrigerant,208/230-1-60 Electrical Which Meets CEC Requirements.
• System Overall Size Is 37"(93cm) Wide, 48.25"(121cm) Long and 14.5"(35cm) High. 11 Total System AMPS, 9.3 Minimum Circuit AMPS,15 Maximum Fuse Size.5.04 EER Rating (system capacity 5237BTU's/hour at 26.7 Degrees Celsius ambient temperature)
• Calculated load for Cooler (4.0 Degrees Celsius) is 3022 BTU's/hour calculated from 24 Degrees Celsius ambient temperature, 23 minutes of open door time per 24 hours for each of (2) 42"(106cm) x 51"(129cm) Walk in doors opening into 24 Degrees Celsius ambient (normal usage).
• (2) 100 Watt lights operating 8 hours per day, no vent air, no people working in the room, no additional electrical load, and 350 pounds of cadavers entering at 24 Degrees Celsius to be cooled in 24 hours.

Additional Information

Manufacturer Unbranded
